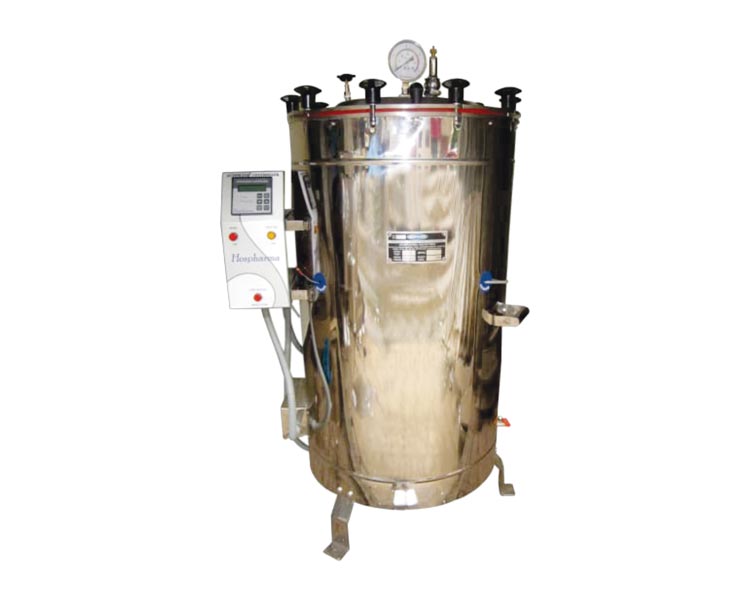

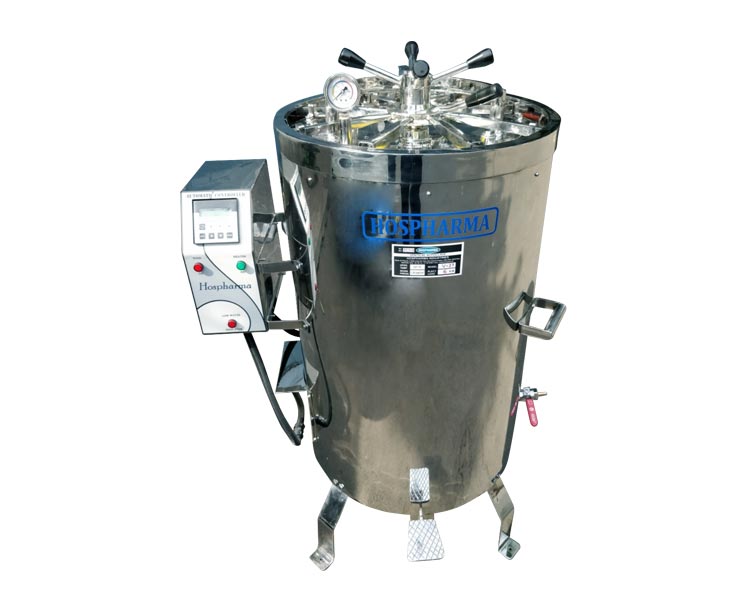

vertical Model

Features

  • Maintenance free
  • Contact parts : S.S.304 / 316 Quality.
  • In case of GMP complete S.S (Material of construction)
  • Models are available in Semi Automatic as well as Fully Automatic.
  • Site validation option.
  • Optional: Digtial temperature controller cum indicator, digital timer, auto-exhaust with alarm.
  • Safety Devices :
    • Pressure switch
    • Safety valves
    • Low water level switch
    • Vacuum Breaker
project-slider-image
project-slider-image

Details

  • Working Pressure : 1.26 kgf/cm.Sq
  • Working temperature : 121oC
  • Mode of heating : Electrically heated by water immersion heaters.
Vertical Model
Volume Chamber Dimension Electric Load
Ltr approx Diameter Depth KW
35 300 500 3
75 400 600 4
100 450 600 6
180 550 750 8
